Activity Timeline
The Activity Timeline is the central chart of the ASH Viewer. It shows the number of active sessions over time, broken down by wait event type — giving you an immediate visual representation of what your PostgreSQL instance was doing at any point in the selected window.

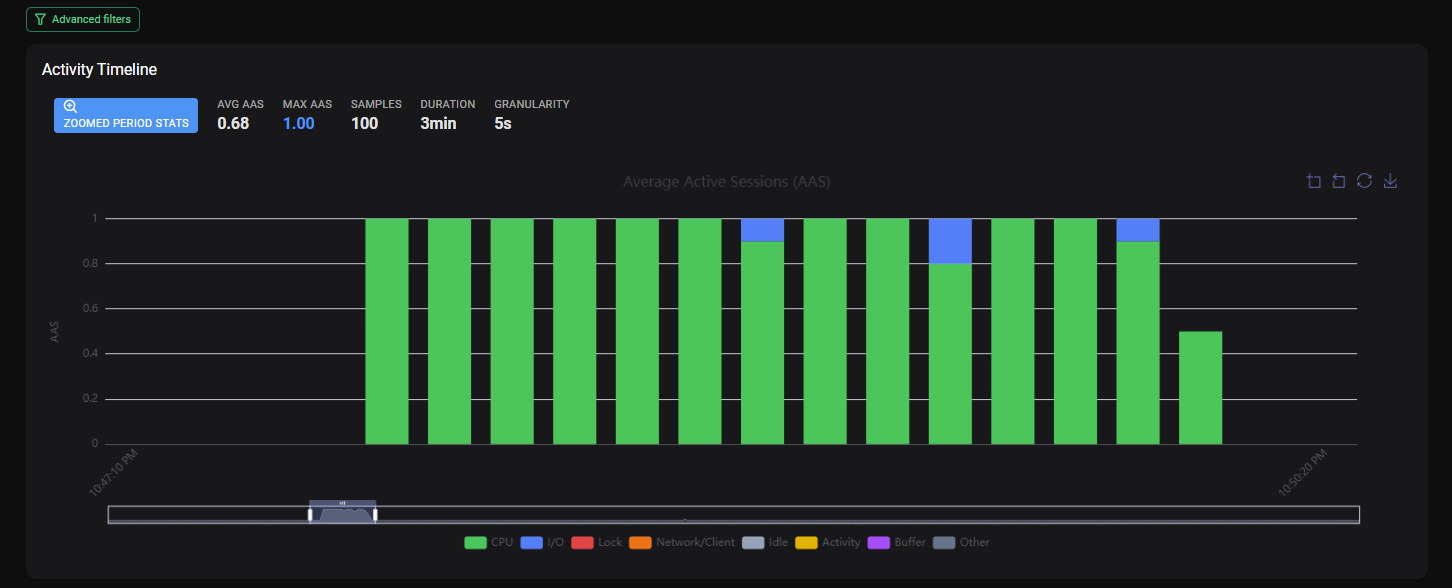

{screenshot: ash-activity-timeline-chart}
Reading the Chart
The timeline is a stacked bar chart where:
- The X axis represents time (the selected window or zoom interval)
- The Y axis represents the number of active sessions
- Each color segment within a bar represents a different wait event type
Wait Event Type Colors
| Color | Wait Event Type | Meaning |
|---|---|---|
| 🟢 Green | CPU | Sessions actively using CPU (not waiting) |
| 🔵 Blue | Lock | Sessions waiting for a lock |
| 🟠 Orange | IO | Sessions waiting for I/O (disk reads/writes) |
| 🟡 Yellow | IPC | Inter-process communication waits |
| 🔴 Red | Timeout | Sessions waiting on timeout events |
| 🟣 Purple | Client | Sessions waiting for client input/output |
| ⚫ Gray | Other | Other or unknown wait event types |
Interacting with the Timeline
Zoom In
Click and drag on the chart to select a specific time interval. All other ASH panels update to reflect only the sessions and queries active during that interval.
{screenshot: ash-timeline-zoom-drag}
Hover
Hover over any bar to see a tooltip with the exact counts per wait event type for that time bucket.
{screenshot: ash-timeline-hover-tooltip}
Reset Zoom
Click Reset Zoom above the chart, or select a new time window from the window selector to clear the zoom.
Identifying Patterns
Healthy Instance
A healthy, normally loaded instance shows predominantly green (CPU) activity with low, consistent bar heights.
{screenshot: ash-timeline-healthy}
Lock Contention Spike
A sudden increase in blue (Lock) segments indicates sessions piling up waiting for locks. This often corresponds to a long-running transaction blocking others.
{screenshot: ash-timeline-lock-spike}
I/O Saturation
A sustained increase in orange (IO) segments suggests disk I/O bottleneck — possibly caused by a large sequential scan, index rebuild or heavy write workload.
{screenshot: ash-timeline-io-saturation}
Timeline and Other Panels
The Activity Timeline acts as the master filter for all other panels on the ASH Viewer page. When you zoom into a time range on the timeline:
- Top SQL shows only queries active during that range
- Top Wait Events reflects only waits from that range
- Lock Contention shows only locks detected during that range
This allows you to precisely isolate what was happening during a specific incident or spike.
